- Judul : Make an inverter : DIY Experiments #2 - Power AC devices with a battery / homemade inverter

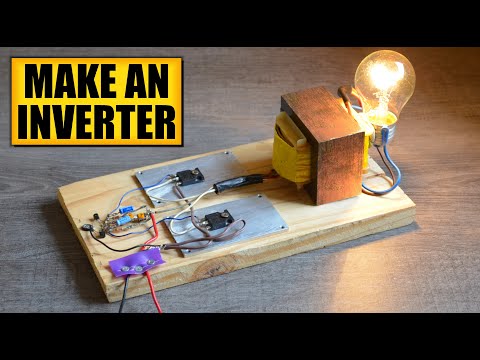

- info : • Link of our Facebook page : https://www.facebook.com/DIY.Experiments.YouTube • Text of the video : Hi everyone, today we’ll show you how to make an inverter! An inverter provides power to objects working on alternating current with only a 12 V battery. First we’ll test our inverter on different devices then we’ll show you how to create yours. Let’s start with a simple test. We plug the terminals on the 12 V battery and then we switch on the inverter. The bulb, which normally works on AC with 230V and consumes 25 Watt, is now on as if it was plugged in the power outlet! Instead of using high consumption light bulbs, we can use economic light bulbs, here is a test with 36W, and as you see it works perfectly. Here is another test with our inverter; we will recharge at the same time an iPod, an iPhone and an iPad. When we switch on, there is enough energy remaining to light up a bulb. The inverter is compatible with every switching-mode power supply, even the most powerful ones. Now we will try to supply a stereo. I turn up the volume gradually. So obviously we can’t reach the volume’s maximum because the inverter can give only up to approximately 30 Watt while the stereo reaches 260 Watt when on maximum volume. There is black out? With the inverter we can supply energy to your room’s lamp. The soldering iron’s cable is too small? With the inverter, the cables are never too small ! Our inverter is made out of 3 parts: - We have a 50 Hz oscillator - 2 MOSFET transistors that amplify the signals - And a transformer We first have to make the oscillator which can be considered as an integral component. The positive terminal is placed in the upper position, while the negative one is in the lower position. It consumes 30mA under a 12 V current. On the sides it supplies a positive current on one side and a zero current on the other side, and vice-versa, with the frequency that we wish. To have a 50 or 60 Hz frequency, the mains frequency, we will give the specifications of the capacitors and resistances that we used at the end of the video. As for the transistors, we can consider it as an amplifier with 3 terminals: base collector and emitter. For the transistor that we are using, when there is a small current between the base and the transmitter, a much powerful current can flow between the collector and the emitter. For example, the current that flows through this resistance would have never been able to light the bulb, but thanks to the transistor, the signal that I’m doing can be reproduced in the bulb. In our inverter we use MOSFET transistors. They act like the other transistors except that their terminals are named Gate (G), Drain (D) and Source (S). The current that must flow between G and S to activate D and S can be very low. As long as there is more than about 4V between G and S, the other circuit is activated. As you can see the current that can flow through the body is enough to activate the MOSFET transistor! We use MOSFET transistor for our inverter because they need very low voltage between G and S to be activated which doesn’t affect the oscillator’s frequency. Since we use recycled components only, the MOSFETs even from different objects have relatively the same specifications, which is very important since the transistor have to be in perfect sync: there should be neither any dead time nor a time when both transistors are activated. We connect the two sides of the oscillator to the transistor’s G terminals. Since the frequency is 50 or 60Hz, each hundredth of a second the activated transistor changes. The transformer must have a 1 to 19 ratio so we can go from 12 V to 230 V, twice less to reach 110V. Since the primary coils are in opposite directions, the direction in which the induced current in the secondary coil flows is opposed to the one from either one of the primary coils. We have a 230 V and 50 Hz current, not really sinusoidal but ideal for supplying mains powered devices. Other tests: A last test with 24 V, this way we can have an 85 Watt power tested here with 2 bulbs: a 60 Watt bulb and a 25 Watt bulb fully lit. However, with 24 V the voltage isn’t stable and we can only obtain 230 V when we consume 85 Watt, and less we consume more the voltage is increasing, it can go up to 600 V on open circuit. We have to supply the circuit with 12 V which consumes 500 mA open and up to 7 A in short circuit with 230 V; this is why we use a big lead battery so that we can have a range of several hours. We have for example a range of 5 hours and a half with this 10 Watt bulb; we can also supply a 230 V laptop stereo with only two 9 V batteries, I switch it on and it works !
- Upload : 27 April 2015
- Durasi : 6:26
- Source : www.youtube.com/watch?v=VDi_uFSr3w0
- Thomas Owens : *The EZ Battery Reconditioning plan by expert Tom Ericson has been released. EZ Battery Reconditioning reveals underground battery reconditioning secrets to bring dead batteries back to life [Check Details Here==>**https://docs.google.com/document/d/163kspciMT9QSUlNAvv0MT-ezkqtKCoEIdoxzlystrFQ/edit?usp=sharing** ].Anyway, thanks for the help and congratulations on a fantastic product.*
- Duino-X : This video is great! I hit subscribe after like the first ten seconds
- AMIN VAN JAVA : detail skema komponen?
- Praveen Kumar : Whaist
- passionated gamer366 : you are the tesla buddy
- Sk Asfaque Allam : can u tell me how to make a lesser light
- sumanth hegde : what are the components used here
- DINESH KUMAR : Sar kipya हिंदी में बताये
- Mister Shledge : Not only this circuit is dangerous, it is badly designed overall - not to mention really inefficient.
- Mr. Nitin : how to make
- Ayush Tiwari : how can i increase the power of inverter to 2Kw from 30w
- सम्राट A to z : Transformar? Working.
- santosh pandey : Bro pls tell me the details about the components which I use in it
- PK MISHRA : very nice
- ashutosh pradhan : please give the ckt diagram of oscillator ckt.how to make oscillator ckt
- khmer movie : not clear. you can show detail step bye step
- Джейсон Хичкок : You must live outside the USA because here in the US we use 60 Hz.
- SUNNY rajput : please write the uses components and it's rating?
- Electronics Engineering : Wish I was taught the same way during my 4-year degree in electronics :( #frustated engineer
- Altex lan : bagiro where to get the transformer???
- Ishan Patel : Hey can you tell me what is the advantage of this inverter over other inverters?
- Alex Aanaya : this video awesome man
- Mark Cabrera : how can we increase power of the invert er ?
- BananaMan : how can I change 20 voltsdc to 120 volts ac?
- John Dayday : how can i make like that with a big capacity of ampere or wattage so that i can run my small motor pump
- John Dayday : IS it possible to stop the voltage up to 230 like that or a permanent one so that it will not go higher and higher
- rotaru adrian : schema component?
- S Mubz : hello, does this inverter has battery charging also,
- Ali Mirza : Amazing!
- B.K. TAMIL : One irf630 was over heating
